Continuing on the SlatWall custom tool holders, I have designed one (or two) to hold Milwaukee M12 drills and drivers. My first attempt used a lot of filament and took a long time to print.
Here it is printed.

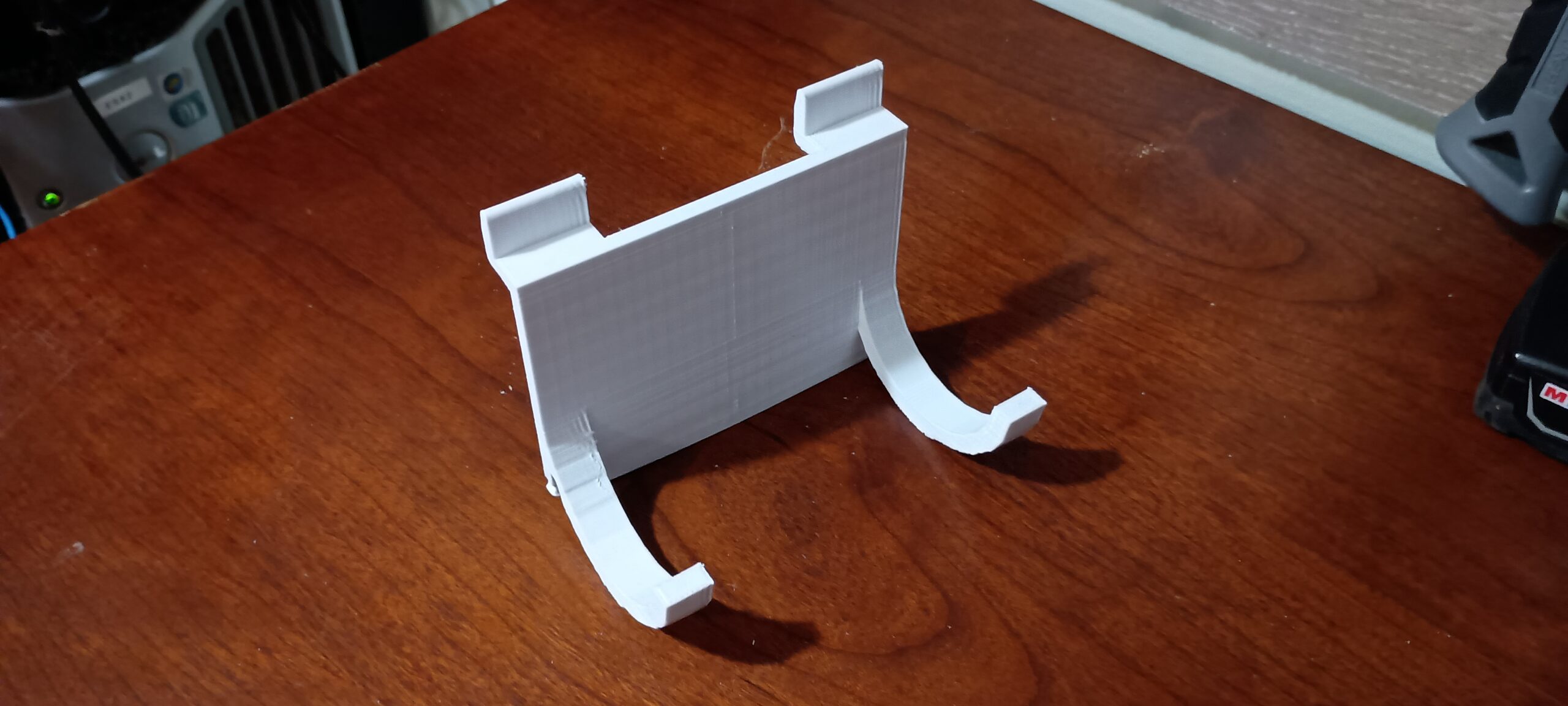

Drill Holder V1
It works well, but my OCD said that the drill needs to be straight, not pointed down.

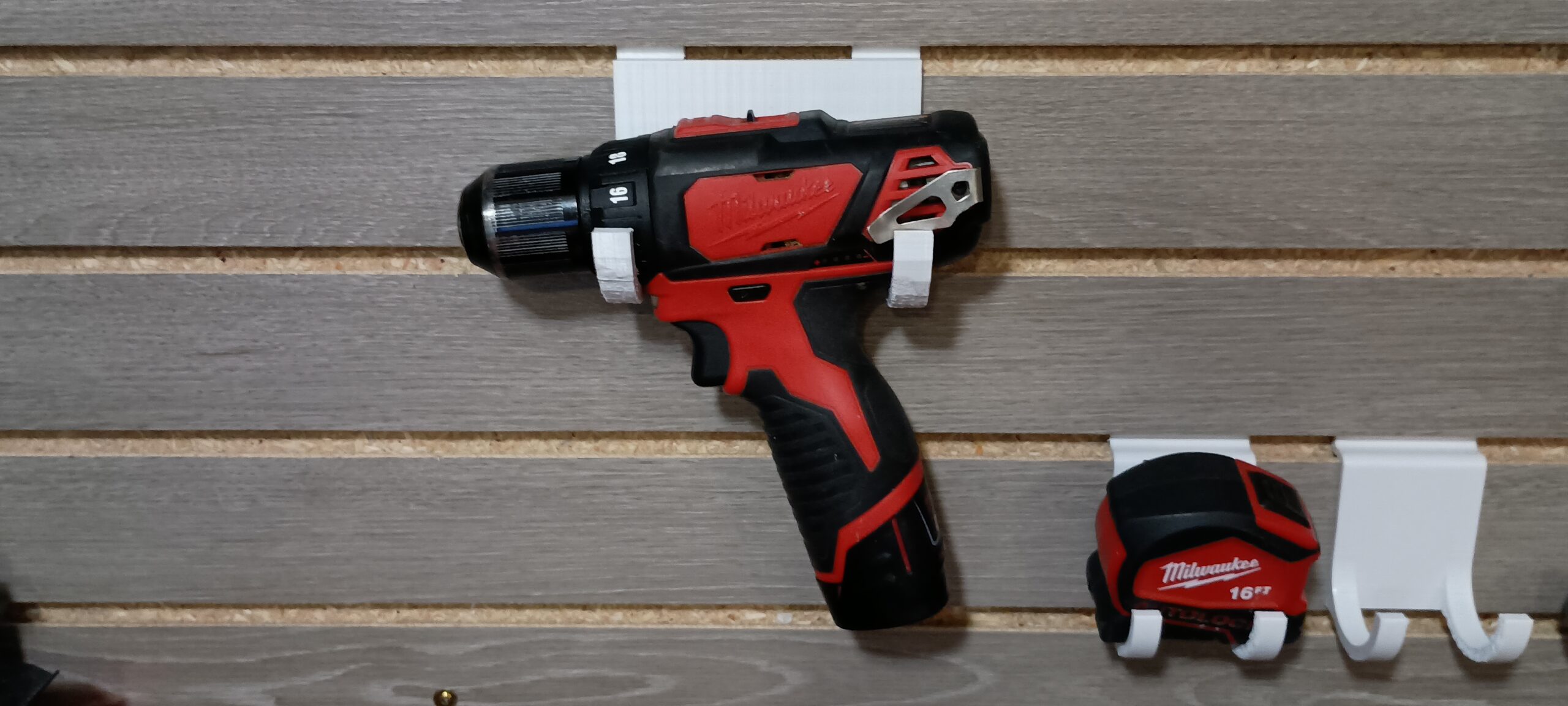

Drill and Holder V1
On to version 2. I decided to not put the locking tab on the bottom, allowing it to be much smaller.
I raised the left hook up 3/8″.

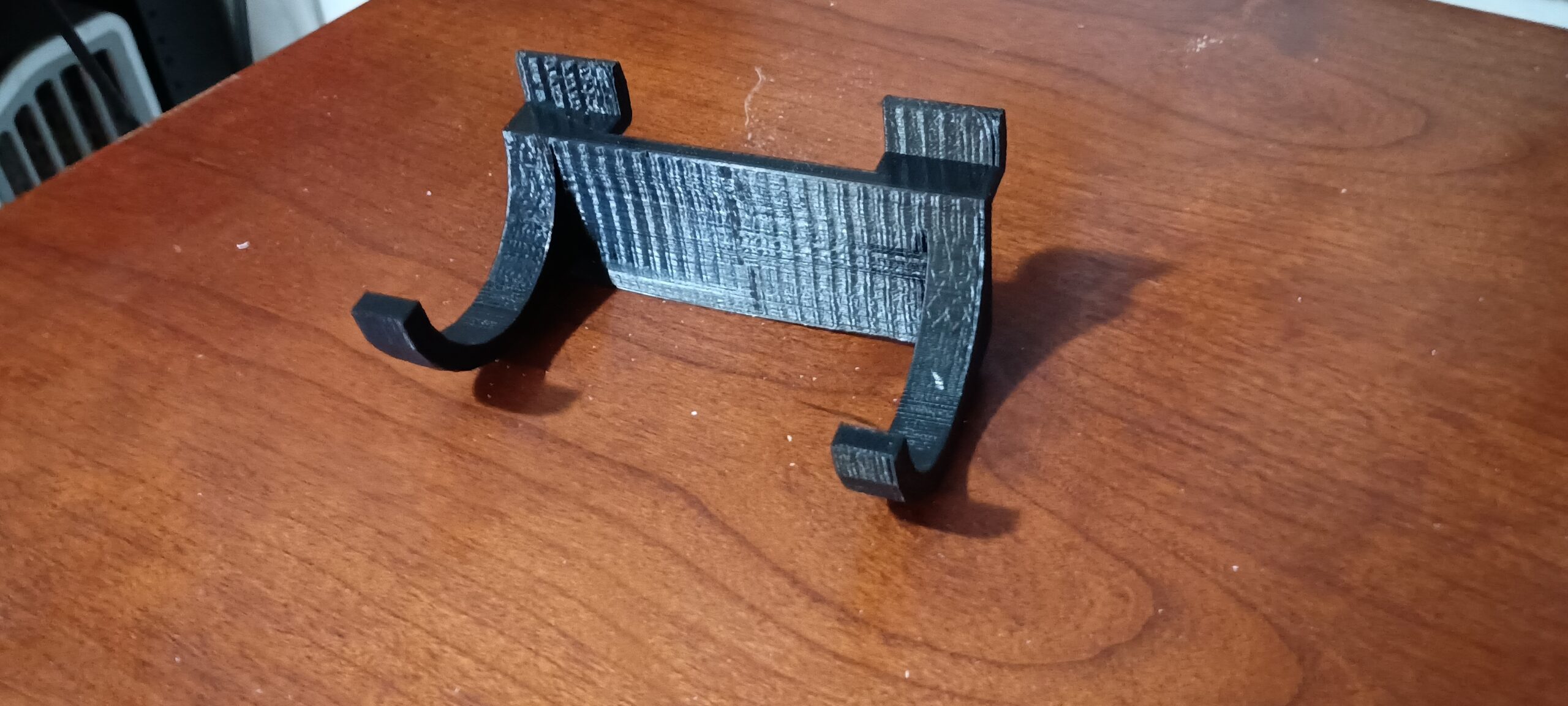

Drill Holder V2
This one was much faster to print.

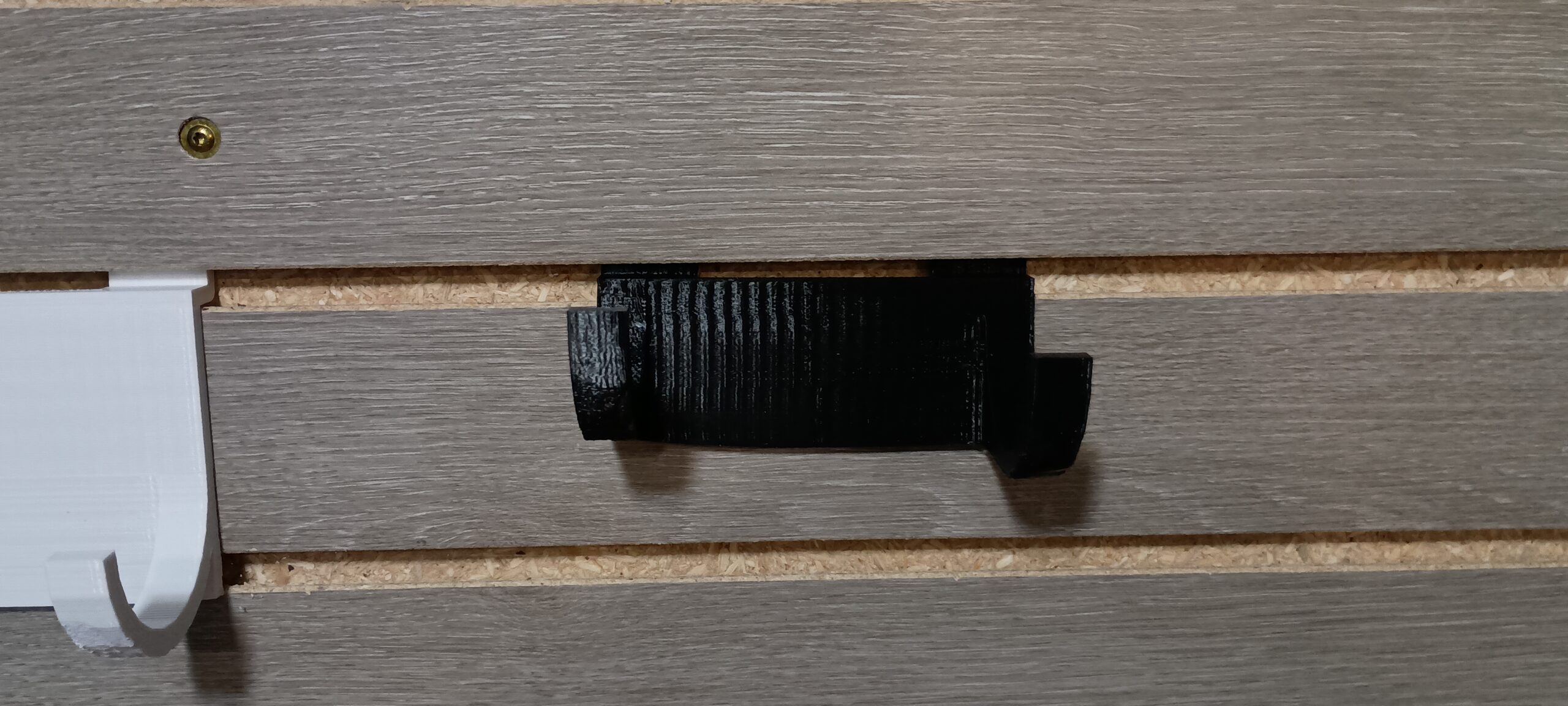

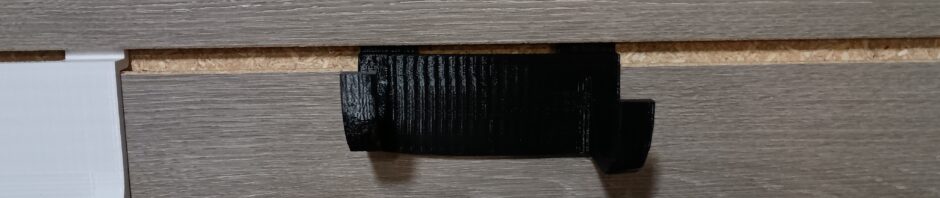

Drill Holder V2 on Wall

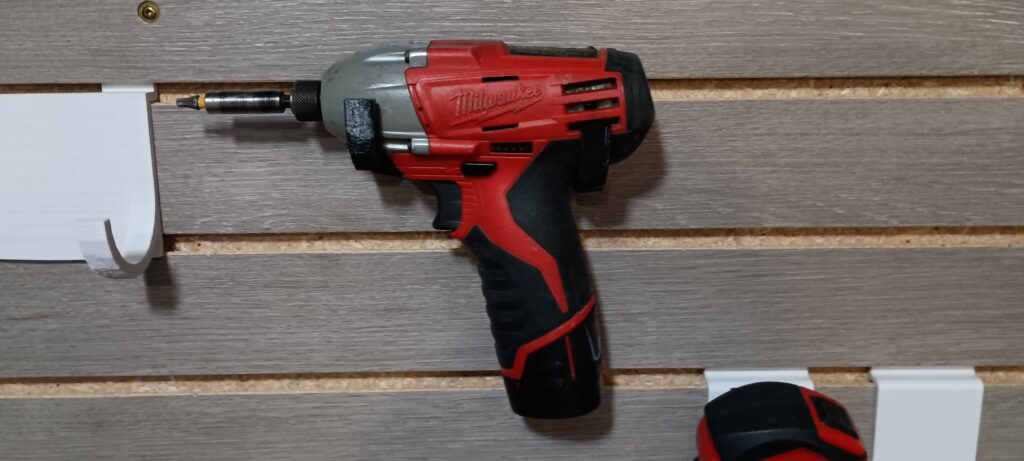

Driver and Holder V2
As you can see, the drivers sit much more level on this one. That’s better.
If you would like the plans for this holder, you can download the Sketchup and .stl files here:
Thanks for viewing. I hope you find this useful.
