Hello once more friends of Borouz Woodworking as well as friends of Wolf Studios.
I’ve recently finished up another pen for a request given to me a couple weeks ago. |
The request was for a clicker pen, now I will say that I haven’t worked on very many clicker style pens, in fact this will mark the first one that I’ve ever completed. Now the whole process of turning it was pretty standard however when getting to the actual putting the pen kit together there were a few different parts that I hadn’t seen or worked with before.
 Turning the blank diagram for click pen. |

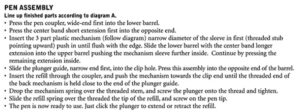

 Click pen assembly instructions. |
When putting all the parts together I had thought that it was going well up until the second to last step. Where I had found that the actual clicker mechanism inside of the pen I had put in backwards. Which required the pen to be disassembled and then put back in the correct way.
All in all it was great fun, I will most likely make some more clicker pens in the future. Now I’ll know how the clicker mechanism needs to go in!

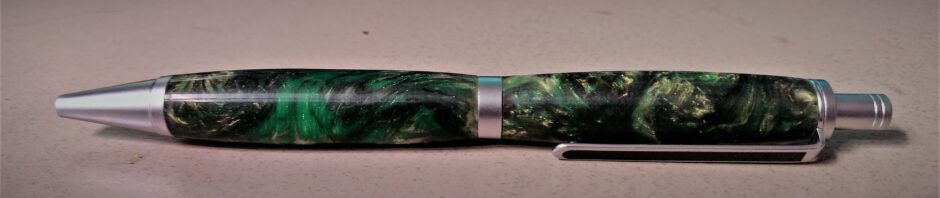

Completed green acrylic pen black with clicker mechanism.
